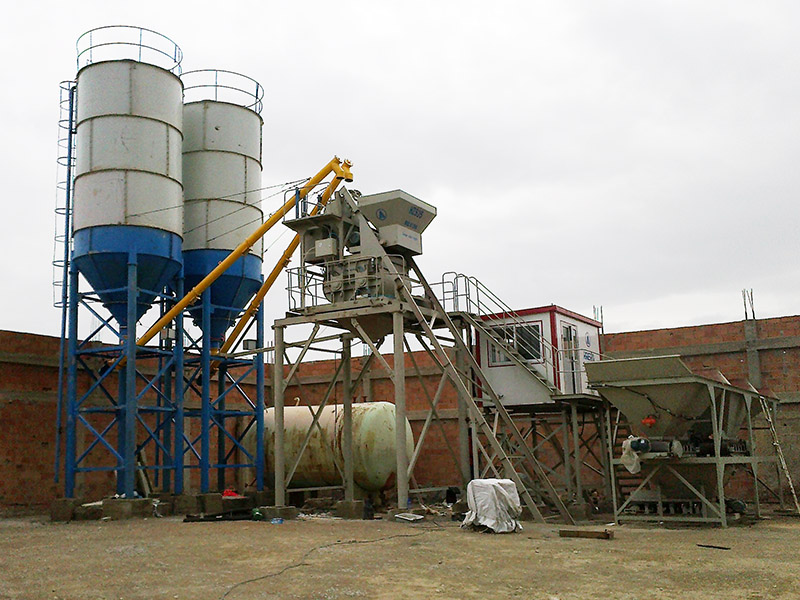

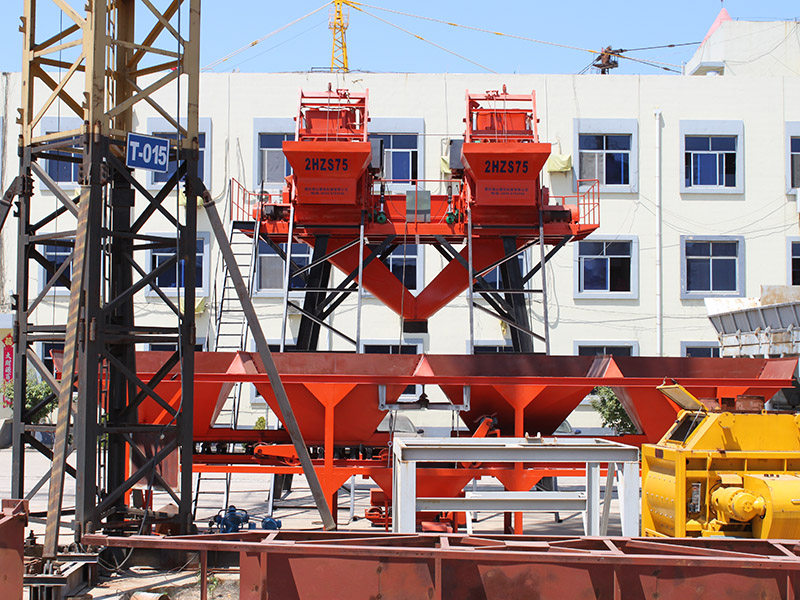

模块混凝士搅拌站系列
MODULAR CONCRETE MIXING PIANT SERIES
| 项目Item/型号Model | HZS25 | HZS35 | HZS50 | HZS75 | HZS100 | |
|
整机 Whole machine |
理论生产率(m³/h) Theoreical productivity |
25 | 35 | 50 | 75 | 100 |
|
控制方式 control mode |
微机 Computer | |||||
|
计量方式 Weighing mode |
电子秤 Electrical scale | |||||
|
出料高度（m） Discharging height |
3.8 | |||||
|
整机装机容量（kw) Whole machinery capacity |
55 | 85 | 110 | 150 | 180 | |
|
搅拌机 Mixer |
搅拌机型号 Model of mixer |
JS500 | JS750 | JS1000 | MT1500 | MT2000 |
|
搅拌机功率（kw） mixing power |
18.5 | 30 | 18.5x2 | 30x2 | 37x2 | |
|
入料容积（L） Charging volume |
800 | 1250 | 1500 | 2250 | 3000 | |
|
出料容积（L) Discharging volume |
500 | 750 | 1000 | 1500 | 2000 | |
|
料径碎石／卵石（mm） Diameter of macadarn/pebble |
40-60 | 40-60 | 40-80 | 40-80 | 40-80 | |
|
骨料储供系统 Aggregate storage system |
配料秤型号 Batcher scale model |
PL800 | PL1200 | PL1600 | DPL2400 | DPL3200 |
|
配科种类 Types of ingredients |
2－3Piece(种) | 3Piece(种) | 3Piece(种) | 3－4Piece(种) | 4Piece(种) | |
|
砂石储料仓容积（m³） Aggregate storage hopper volume |
3x2-3 | 3.4x3 | 5x3 | 8x3 | 15x3 | |
|
计量范围及精度 Weighing range & accuracy |
200-1500±2% | 200-2000±2% | 200-2500±2% | 200-3500±2% | 200-5000±2% | |
|
理论生产能力(t/h) Theoretical capacity |
80 | 100 | 140 | 190 | 260 | |
|
粉料储供系统 Powder storage |
粉料存储能力(t) Powder storage capacity |
50x1 | 50x2 | 100x2 | 100x2 | 100x4 |
|
螺旋输送机能力(t/h) Screw conveyer capacity |
30 | 35 | 45 | 55 | 80 | |
|
水泥计量范及精度 Cement weighing range&accuracy |
50-300±1% | 50-400±1% | 100-600±1% | 100-1000±1% | 100-1100±1% | |
|
水外加剂绪供系统 Water addives storage system |
水计量范围(kg) Water weighing range |
50-150 | 50-200 | 50-350 | 50-450 | 50-500 |
|
水计量精度 Water weighing accuracy |
±1% | |||||
|
液态外加剂量范国(kg) Liquid additives weighing range |
5-20 | 5-20 | 5-20 | 5-30 | 5-60 | |
|
液态外加剂量精度 Liquid additives weighing accuracy |
±1% | |||||
