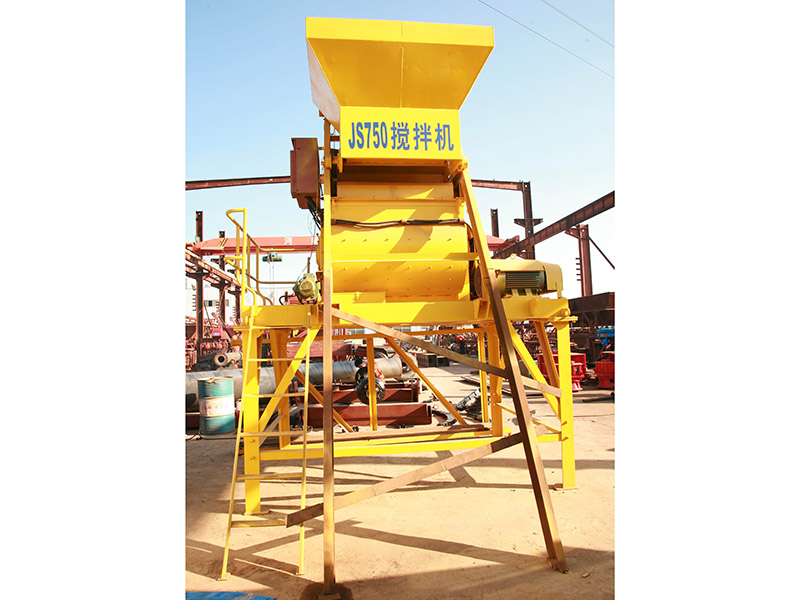

搅拌机系列
CONCRETE MIXER SERIES
混凝土搅拌机主要技术参数 MAIN TECHNICAL PARAMETERS OF CONCRETE MIXER
型号Model/参数项目Item Parameters | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | |
进料容量(L) Loading capacity |
800 | 1200 | 1600 | 2400 | 3200 | 4800 | 6000 | |
出料容量(L) Discharge capacity |
500 | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | |
生产率(m³/h) Productivity |
≥25 | ≥35 | ≥50 | ≥75 | ≥100 | ≥150 | ≥150 | |
骨料最大粒径(卵石/碎石)(mm) Max.dia.of aggregate(pebble/macadarn) |
80/60 | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | |
搅拌电机 Mixer motor |
型号Type | Y180L-4 | Y2O0L-4(B3) | Y200L1-6 | Y225S-4 | QA225S4A | QA225S4A | Y2-280S-4 |
功率(KW)Power | 18.5 | 30 | 2×18.5 | 2×30 | 2×37 | 2×55 | 2×75 | |
卷扬电机 Haisting motor |
型号Type | YEZ132S-4-B5 | YEZ132M-4 | YEZ180M-4 | YEZ200L2-6 | |||
功率(KW)Power | 5.5 | 7.5 | 18.5 | 22 | ||||
料斗提升速度(m/min) Hopper lifting speed |
18 | 18 | 21.9 | 23 | ||||
外形尺寸(mm) 长×宽×高 Outline dimensions (length*width*height) |
运输状态 Transporting status |
3050×2300×2680 | 2540×3160×2660 | 4060×2250×2250 | 5058×2250×2440 | 3945×2250×2735 | 3945×2250×2735 | 4345×2250×2835 |
工作状态 Working status |
4461×3050×5225 | 5090×3320×6275 | 8765×3436×9540 | 9645×3436×9700 | 4245×2440×2130 | 4545×2440×2130 | 4945×2540×2230 | |
整机重量(kg) Total weight |
4000 | 5500 | 8750 | 11130 | 9000 | 10500 | 11800 | |
卸料高度(mm) Discharge height |
1500/3800 | 2700/3800 | 2700/3800 | 3800 |
